PyroSigma
Miniature Pyrometer with Built-in Display

Gallery

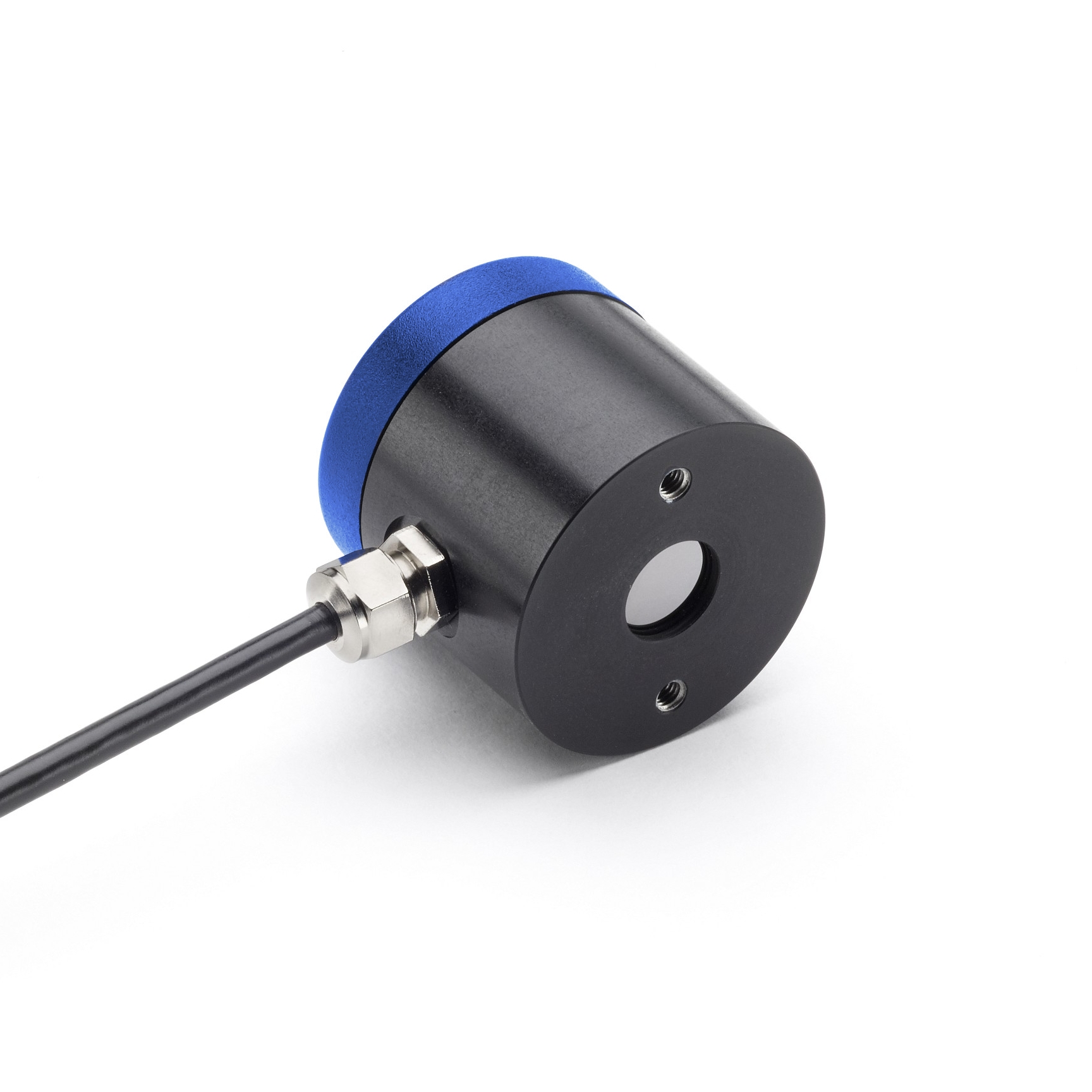

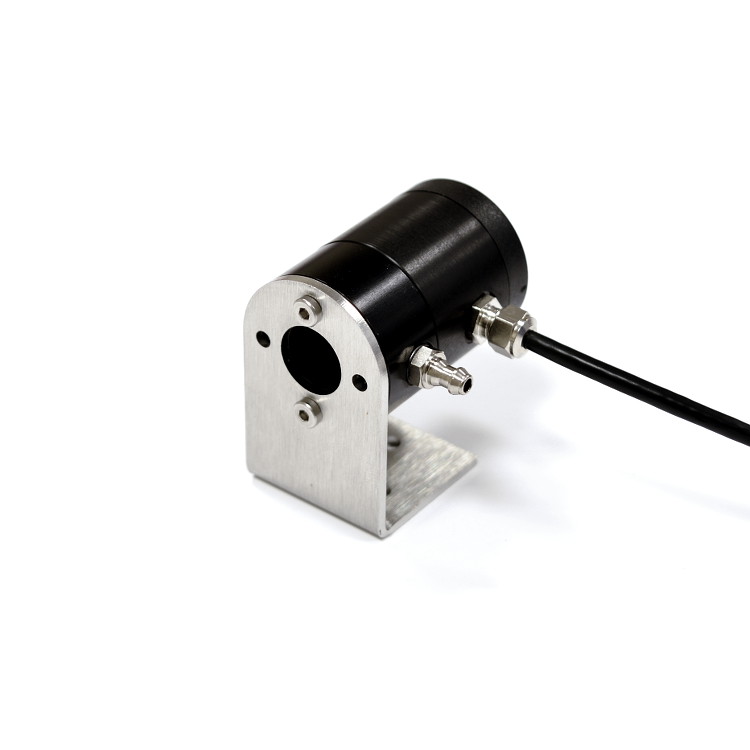

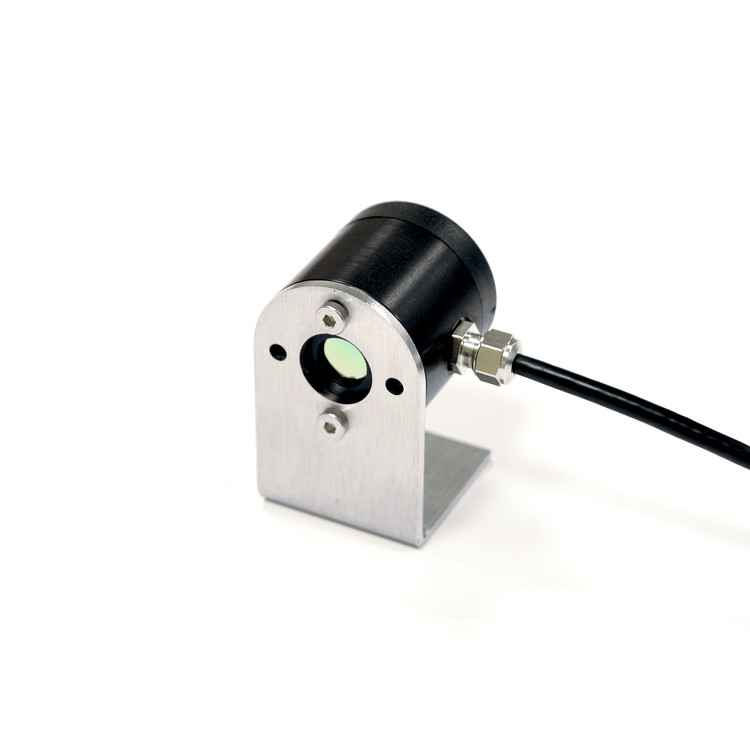

PyroNFC Pyrometer with Bracket and Air PurgePyroNFC Pyrometer with Fixed Mounting BracketCalex PyroSigma - miniature infrared temperature sensor with display - front showing lens and mounting holes

Features

  • Small, low-cost industrial infrared temperature sensor
  • Side-entry cable: ideal for mounting in tight spaces
  • Voltage output, selectable 0-10 / 0-5 / 1-5 V DC
  • Measures temperatures from 0°C to 1000°C
  • Fully configurable for averaging, hold processing, emissivity, output scale etc.
  • Alarm output
  • Low-profile housing for applications with limited headroom e.g. IR curing, dryers, laminating machines, switchgear cabinets etc
  • Not designed or approved for fever detection

Key Feature Tags

Read more

General Specifications

Temperature Range
0 to 1000°C
Temperature Output
Voltage: 0-5 V DC or 0-10 V DC output, linear with measured temperature, rescalable
Alarm Output
Open collector alarm output with temperature threshold and hysteresis, configurable

Note: Alarm and temperature outputs may be used simultaneously
Field of View
15:1 (see Field of View Diagram)
Accuracy
± 1.5% of reading or ± 1.5°C, whichever is greater
Repeatability
± 0.5% of reading or ± 0.5°C, whichever is greater
Response Time
125 ms (90% response)
Configuration

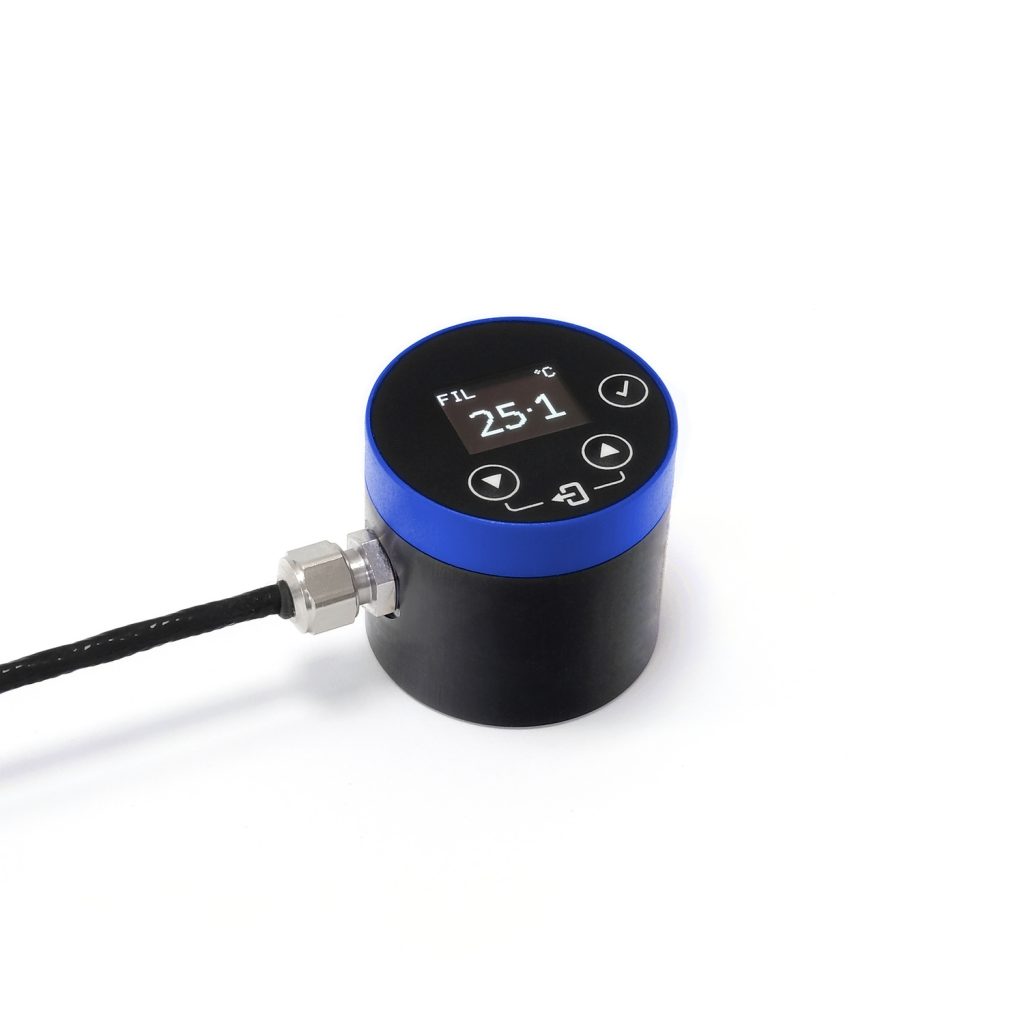

Via built-in display and controls
Emissivity Setting
Adjustable 0.2 to 1.0
Max Temperature Span (Voltage Output)
1000°C
Min Temperature Span (Voltage Output)
100°C
Spectral Range
8-14 μm
Max. Supply Voltage
28 V DC
Min. Supply Voltage (at Sensor)
12 V DC (for 10 V output)
6 V DC (for 5 V output)
Max Current Draw
10 mA

Configuration

Configurable Parameters
Temperature range for voltage output
Output voltage range and scale
Alarm output threshold and hysteresis
Emissivity setting
Reflected temperature
Signal processing (see below)
Temperature Units
°C / °F
Signal Processing
Averaging Period (0.125 to 60 seconds)
Peak / Valley Hold Mode
Hold Period (0.125 to 120 seconds)

Field of View Diagram

The diagram shows the measured spot size for 90% of the detected energy. Sensors can measure longer distances than the diagram shows, and the accuracy is not affected by the measurement distance in clean air. This is because the PyroNFC detects only the wavelengths of infrared radiation that are not absorbed by the atmosphere.

Mechanical Specifications

Construction
Black anodised aluminium and blue ABS
Cable Length
1 metre standard (longer lengths available to order)
Weight with 1 Metre Cable
65 g

Environmental Specifications

Environmental Rating
IP65
Ambient Temperature Range
0°C to 70°C
Relative Humidity
95% max. non-condensing

Electromagnetic Compatibility Standards

EN61326-1, EN61326-2-3 (Electrical Equipment for Measurement, Control and Laboratory Use – EMC Requirements)

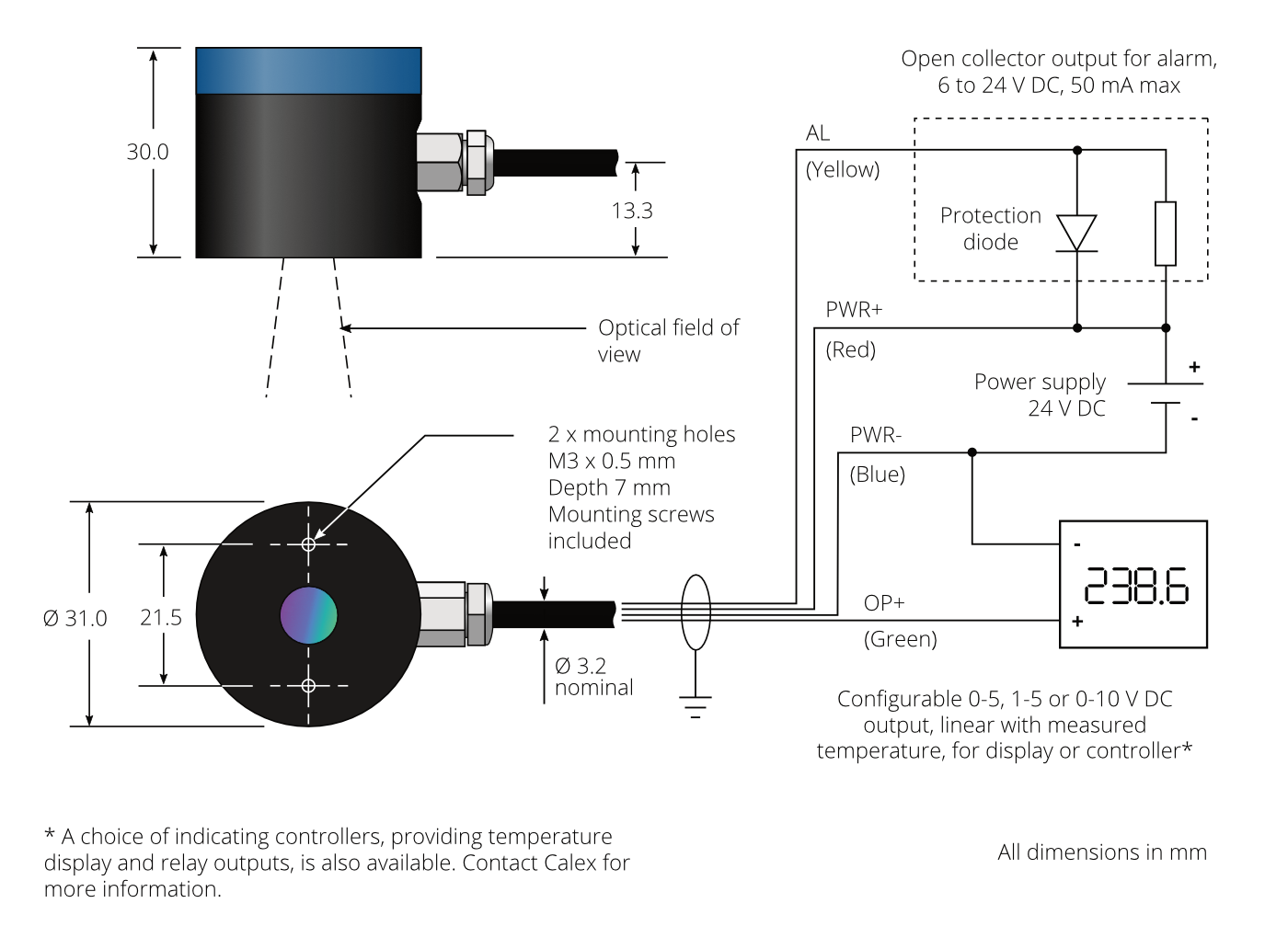

Installation (all dimensions in mm)

Mounting Bracket

Fixed and adjustable mounting brackets

Provides 1 or 2 axis adjustment for aiming the sensor. Model shown: FBN (fixed mounting bracket, 1 axis adjustment).

Model: FBN (fixed); ABN (adjustable)

Air purge collar

Air purge collar

The lens of all infrared temperature sensors must be kept clean for accurate measurements. This accessory helps stop dust and condensation from settling on the lens. Includes barbed air fitting and long mounting screws.

Model: APN

Calibration Certificate

UKAS traceable calibration certificate at 3 standard temperature points.

Model: CALCERTA

Extended Cable

Calex can optionally fit a longer cable to the sensor (30 m max). The cable can also be extended by the user. See Ordering.

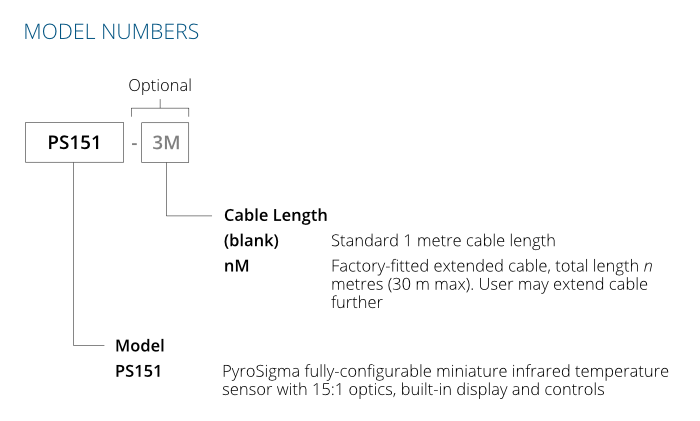

Ordering Information
