Pixsys DRR245 (Superseded by DRR244)
DIN rail or wall mounted indicating controller and signal converter
Alternative Product:Pixsys DRR244

Gallery

PyroEpsilon infrared temperature sensor with PPT245 indicating controller in IP65 enclosure

Features

  • Fully configurable indicating PID controller for single control loop
  • DIN rail or wall mount
  • Universal analogue input for current, voltage, thermocouple, RTD, thermistor, potentiometer, or loop break alarm via current transformer
  • Ideal for measurement of temperature, pressure, flow, level, pH, and many other process values
  • Rescalable analogue output for control, retransmission or signal conversion
  • Relay and SSR outputs
  • Provides temperature indication and emissivity adjustment for PyroEpsilon infrared temperature sensor

Key Feature Tags

Read more

General Specifications

Inputs
1 input, configurable for J, K, R or S thermocouples; Pt100; Ni100; Pt1000; Pt500; PTC1k; NTC10k; 0 to 10 V; 0/4 to 20 mA; 0 to 40 mV; potentiometer 6 kΩ / 150 kΩ; TA 50 mA for Loop Break Alarm
Digital Input
Tuning start, Setpoint change, Man/Auto selection, Hold function, Start/Stop preprogrammed cycle
Outputs
2 relays 5 A resistive + 1 logic SSR 12 V 30 mA / 4 to 20 mA / 0 to 10 V for emissivity adjustment, control or retransmission, galvanically isolated from input and power supply, RS485 Modbus RTU (57600 baud max)
Control Action
ON/OFF, P, PI, PID, Autotuning
Configuration
Via push buttons, parameters protected by password; optional memory card with battery for repeat configurations; LabSoftView software for configuration via a PC
Display
4-digit dual LED, 8 red status LEDs
Accuracy
0.5% ± 1 digit for TC/RTD; 0.2% ± 1 digit for V/mA
Sampling Time
Selectable (15 ms max)
Supply Voltage
24 to 230 V AC/DC ± 15%, 50/60 Hz
Power consumption
3 W
Operating Temperature
0°C to 45°C
Operating Humidity
35% to 95% RH
Sealing
IP20
Product Markings
CE, RoHS Compliant

Signal Conversion Capability

1 x Input, Selectable:
Thermocouple: Type K, J, S, R
RTD: Pt100, Pt500, Pt1000, Ni100
Thermistor: PTC1K, NTC10K (B 3435K)
Current: 0-20 mA, 4-20 mA
Voltage: 0-10 V, 0-40 mV
Potentiometer: 1 to 6/160 kΩ
Current Transformer: 1024 points
1 x Output, Linear, Selectable:
Current: 4 to 20 mA
Voltage: 0 to 10 V DC

As well as being suitable for process control in a wide range of industries, the DRR245 is ideal for use with the PyroEpsilon infrared temperature sensor.

Push buttons on the front of the unit allow the user to adjust the emissivity setting of the PyroEpsilon sensor, which is controlled by the DRR245’s 4-20 mA analogue output.

The emissivity is quickly and easily adjusted during the process.

Two alarm relay outputs and RS485 Modbus communications can be used simultaneously.

Electrical Installation

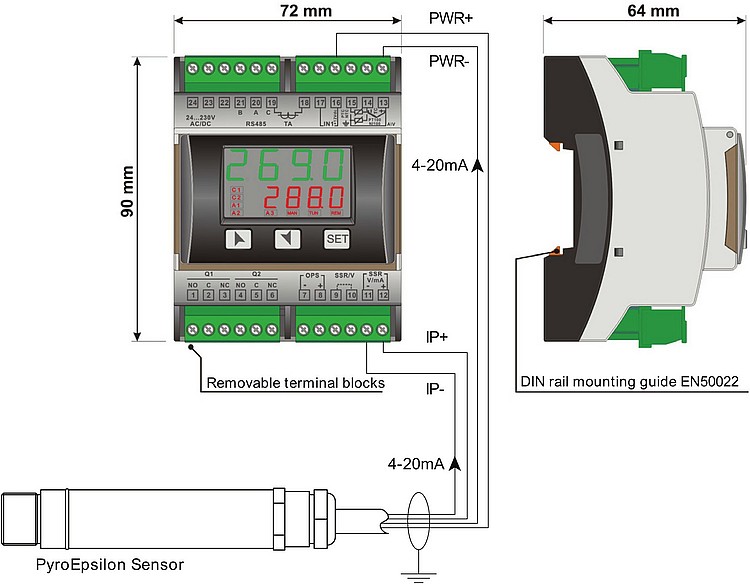

This diagram shows the electrical connections for use with the PyroEpsilon infrared temperature sensor. The DRR245 controller may be used with many other types of sensor in a wide range of applications. For connection details for other sensor types please see the DRR245 manual.

The following accessories are available for the DRR245:

• Memory card for quick configuration of many controllers

• Configuration software

Model Description
DRR245 Controller/indicator/signal converter, DIN rail or wall mount
