PyroPen Series (Discontinued – see ST680 Series)
Precision pen-style handheld infrared thermometer
Alternative Product:ST680 Series (discontinued)

Gallery

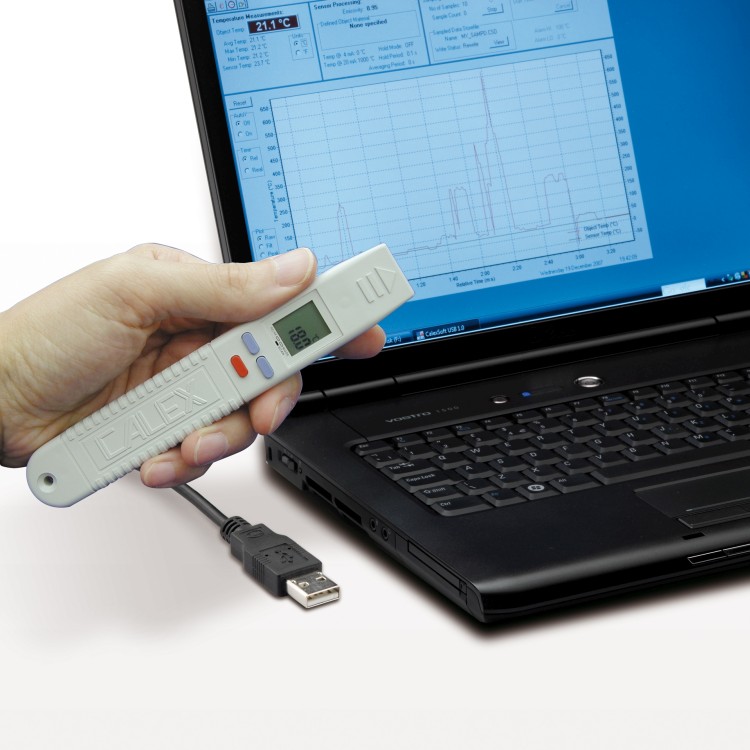

PyroPen U pen-style infrared thermometer with USB connection to PC

PyroPen E

  • High-performance pen-style infrared thermometer
  • Temperature range: -20°C to 500°C
  • Fixed emissivity 0.95, ideal for use on rubber, wood, asphalt, plastics, painted surfaces, organic materials and many more
  • Precision 8:1 optics
  • Very high accuracy: ±1°C or 1% of reading
  • Fits in your pocket, ideal for spot temperature checks

PyroPen L

  • All the features of the PyroPen E, plus:
  • Adjustable emissivity setting for accurate readings on a variety of surfaces
  • Laser sighting

Key Feature Tags

Read more

This product is discontinued. Contact Calex for assistance on alternative products.

PyroPen E PyroPen L
Emissivity Fixed at 0.95 Adjustable 0.3 to 1.0
Sighting None Laser
Data Logging None None
Data Acquisition None None
Hard carry case None None
Weight 50 g 60 g

General Specifications

Temperature Range
-20°C to +500°C
Accuracy
±1% of reading or ±1°C whichever is greater
Repeatability
±0.5% of reading or ±0.5°C whichever is greater
Response Time, t90
500 ms (90% response)
Spectral Range
8 to 14μm
Ambient Temperature Range
0°C to +50°C
Housing type
Pen-style
Display
3.5 digit LCD
Power
2 x AAA batteries (not supplied)
Reading
°C or °F SCAN/HOLD/LOCK/MAX/MIN/AVG
Display Resolution
0.1°
Field-of-view
8:1
Relative Humidity
10 to 95% non-condensing
Dimensions
163 x 27 x 16 mm
Please note: The given measured spot size contains 90% of the energy detected by the sensor. We normally recommend the target is at least twice as large as the given measured spot for maximum accuracy. The thermometer may be used at longer distances than the above diagram shows, with a proportionally larger measured spot.

This product is discontinued. Contact Calex for assistance on alternative products

The PyroPen is an ideal general-purpose sensor for a huge range of applications. For example, some typical uses include:

Typical Applications

Maintenance
Pipe temperature checking, e.g. for heat loss calculation
Power distribution
Switchgear temperature checking
Condition checking
Painted machine surfaces such as bearing housings and shafts are easily measured
Legionella prevention
Water storage temperatures in public buildings can be checked without contact to help prevent Legionella
Food storage and transportation
The temperature of refrigerated food can be checked to ensure it stays within strict limits

This product is discontinued. Contact Calex for assistance on alternative products.

Model Number Description
PyroPen E Handheld pen-style infrared thermometer with fixed emissivity setting
PyroPen L Handheld pen-style infrared thermometer with adjustable emissivity setting and laser sighting

This product is discontinued. Contact Calex for assistance on alternative products
