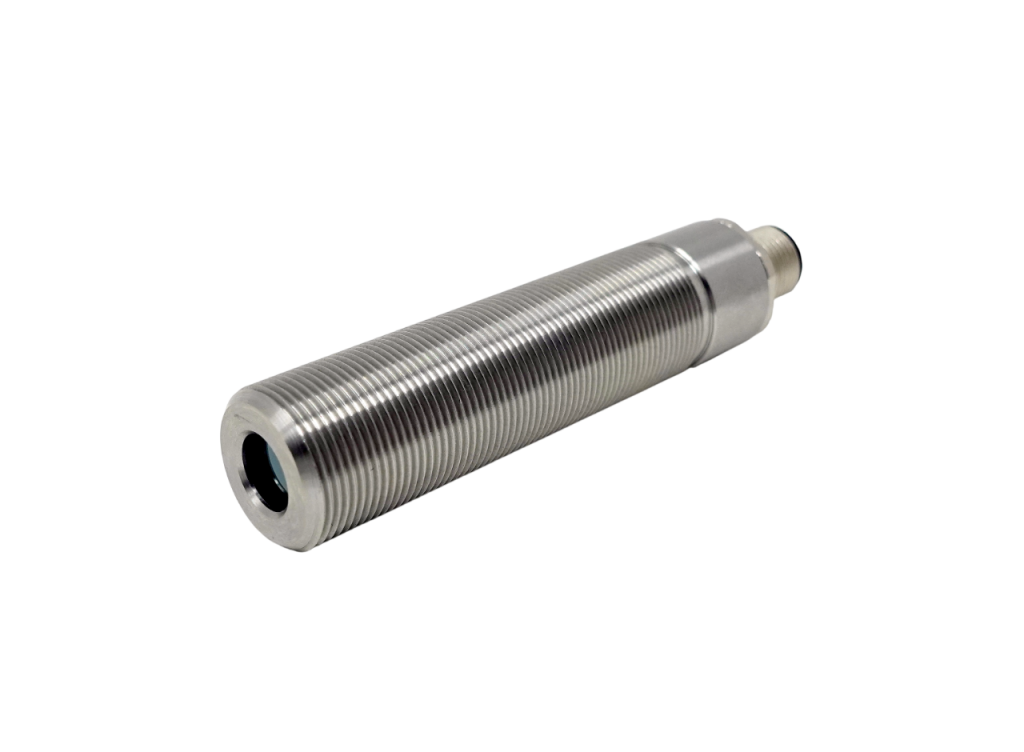

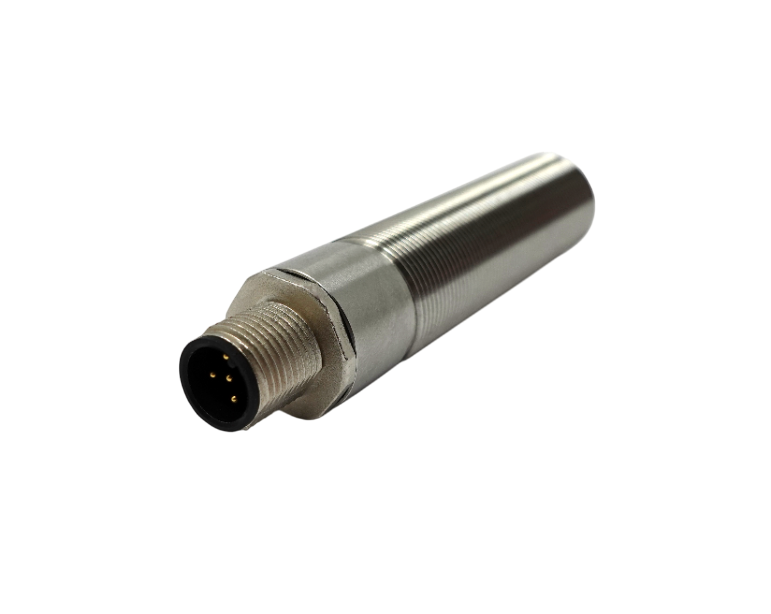

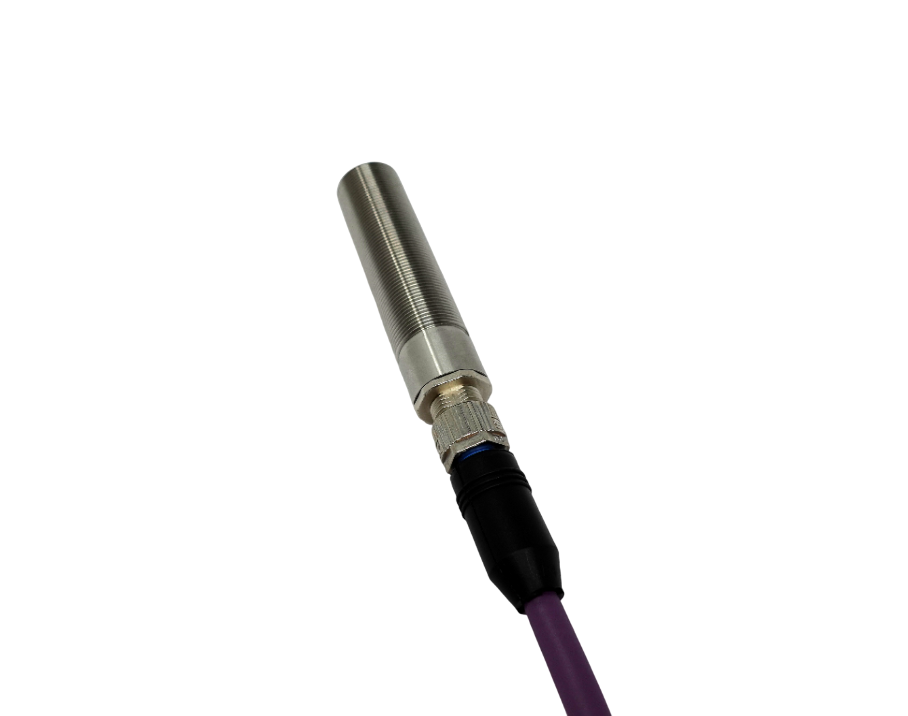

Data SheetThe PyroCV is a simple, robust infrared temperature sensor with CAN communications or a voltage output, tested to EMC standards for construction machinery.
No complicated setup is required – just connect a temperature indicator and power supply, and instantly start taking measurements.
General Specifications
Output
Raw CAN, and
0 to 5 V DC, linear with
measured temperature
0 to 5 V DC, linear with
measured temperature

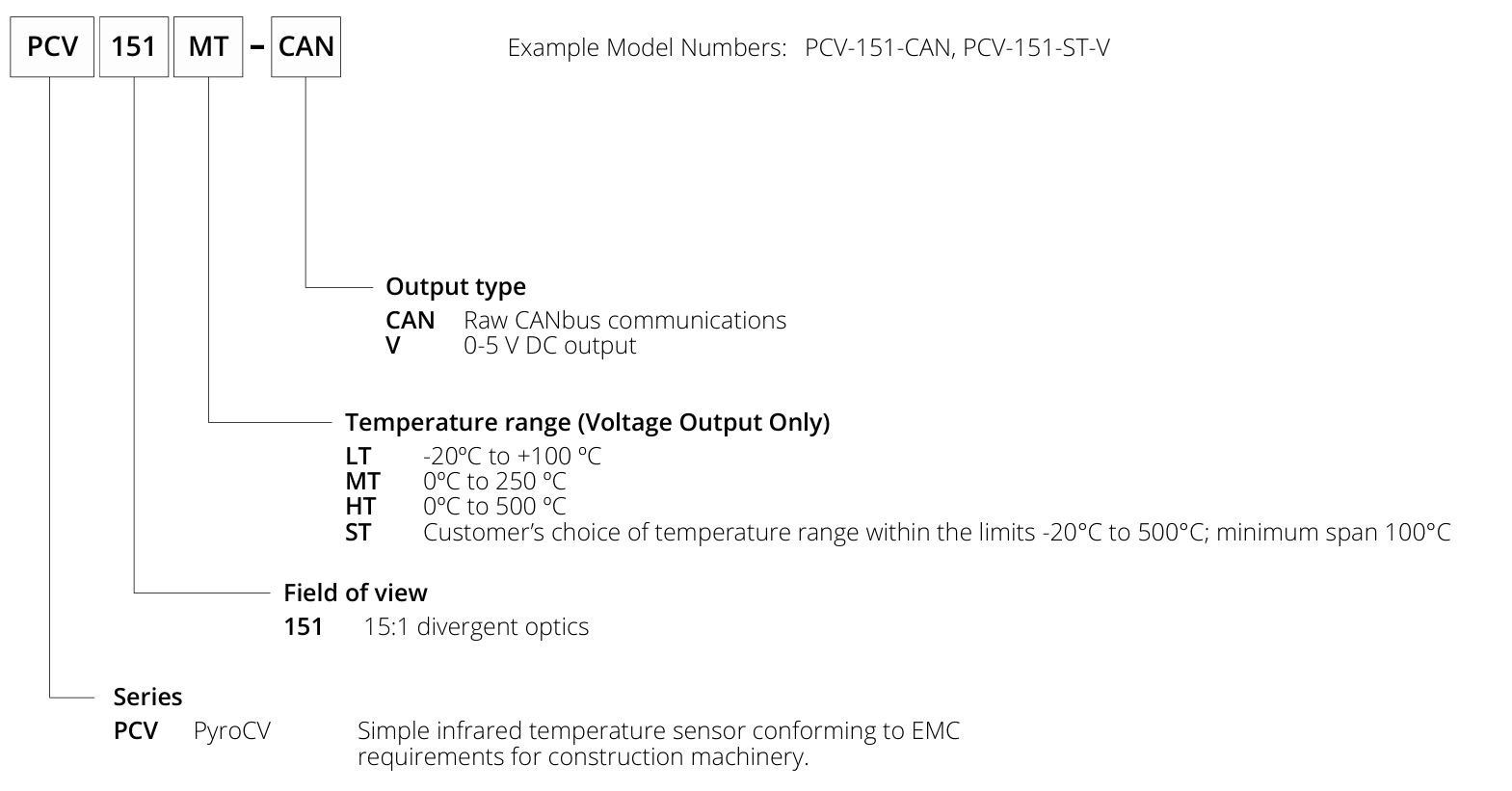

Temperature Range
CAN models: -20°C to 500°C
Voltage output models:
LT: -20°C to +100°C
MT: 0°C to 250°C
HT: 0°C to 500°C
ST: Customer’s choice of temperature range within the limits -20°C to 500°C; minimum span 100°C
Voltage output models:
LT: -20°C to +100°C
MT: 0°C to 250°C
HT: 0°C to 500°C
ST: Customer’s choice of temperature range within the limits -20°C to 500°C; minimum span 100°C
Accuracy
±1% of reading or ±1°C,
whichever is greater
whichever is greater
Repeatability
± 0.5% of reading or
± 0.5°C, whichever is
greater
± 0.5°C, whichever is
greater
Emissivity Setting
CAN: 0.2 to 1.0 (configurable)
Voltage: 0.95 (fixed)
Voltage: 0.95 (fixed)
Startup Time
250 ms
Response Time
125 ms (90% response)
Spectral Range
8 to 14 μm

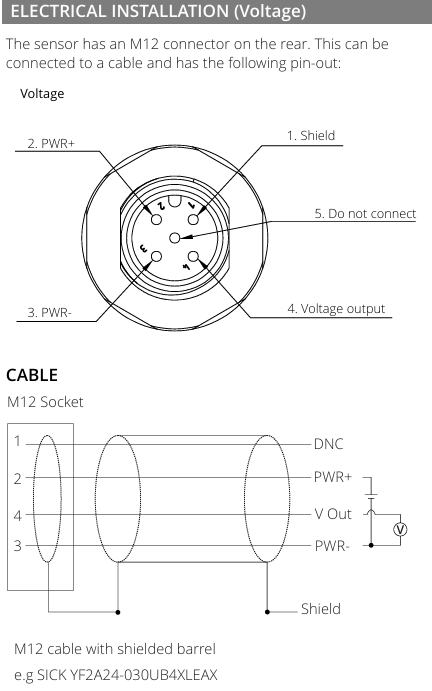

Supply Voltage (at Sensor)
10 V DC to 28.8 V DC
Max. Current Draw
20 mA
Minimum Load Resistance (Voltage only)
50 kΩ
Wiring Protection
Reverse polarity; shorts to
other pins
other pins

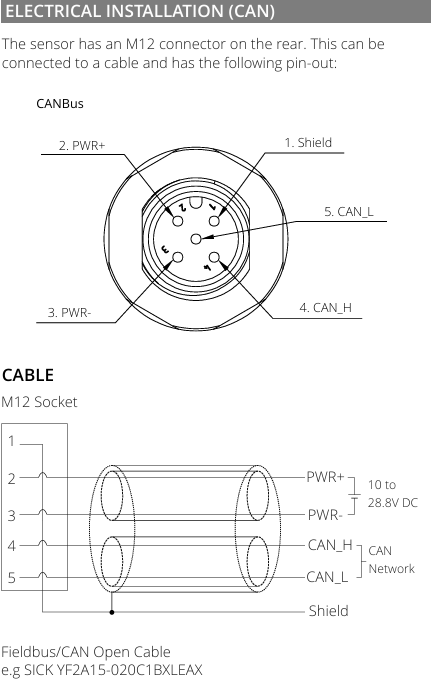

CAN Protocol Specifications
Baud Rate
250 kbps
Data format
8 bytes total:
Bytes 1-4: Object temperature as floating point
Bytes 5-8: Ambient temperature as floating point
Bytes 1-4: Object temperature as floating point
Bytes 5-8: Ambient temperature as floating point
Transmit interval
200 ms
CAN ID range
ID can be set between 0 and 255 as a 4-byte unsigned integer
Emissivity
Adjustable from 0.2 to 1.0 as a 4-byte floating point

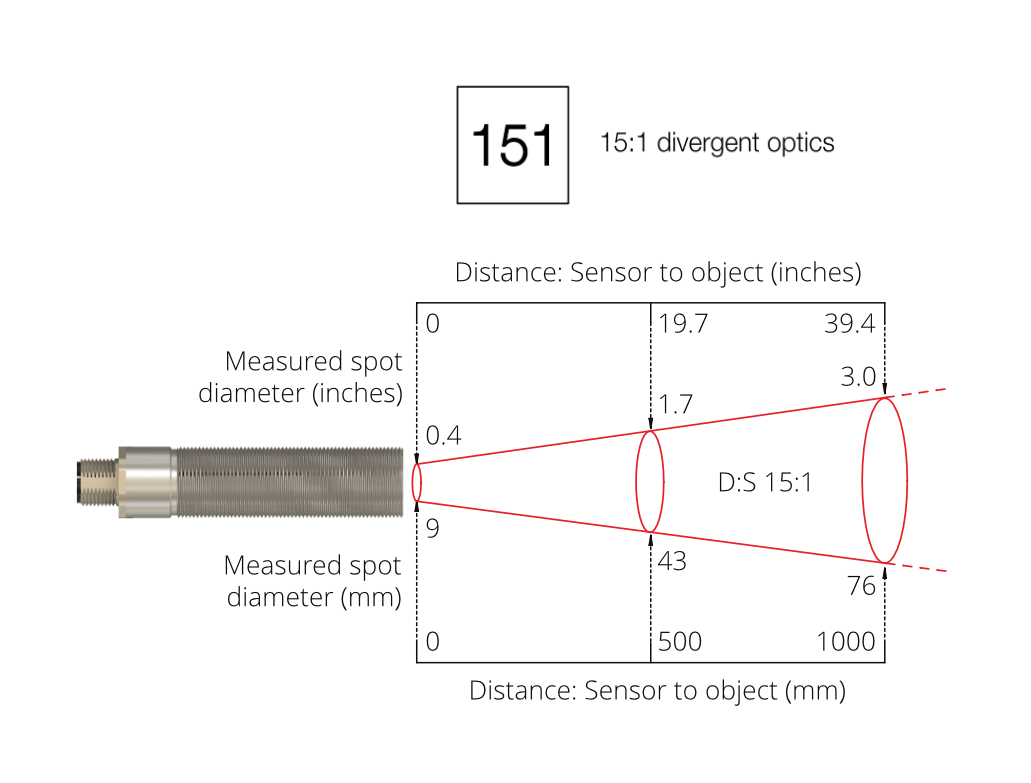

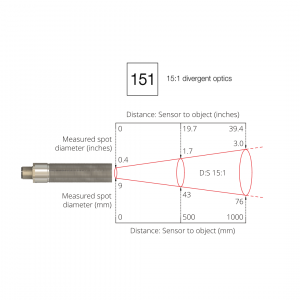

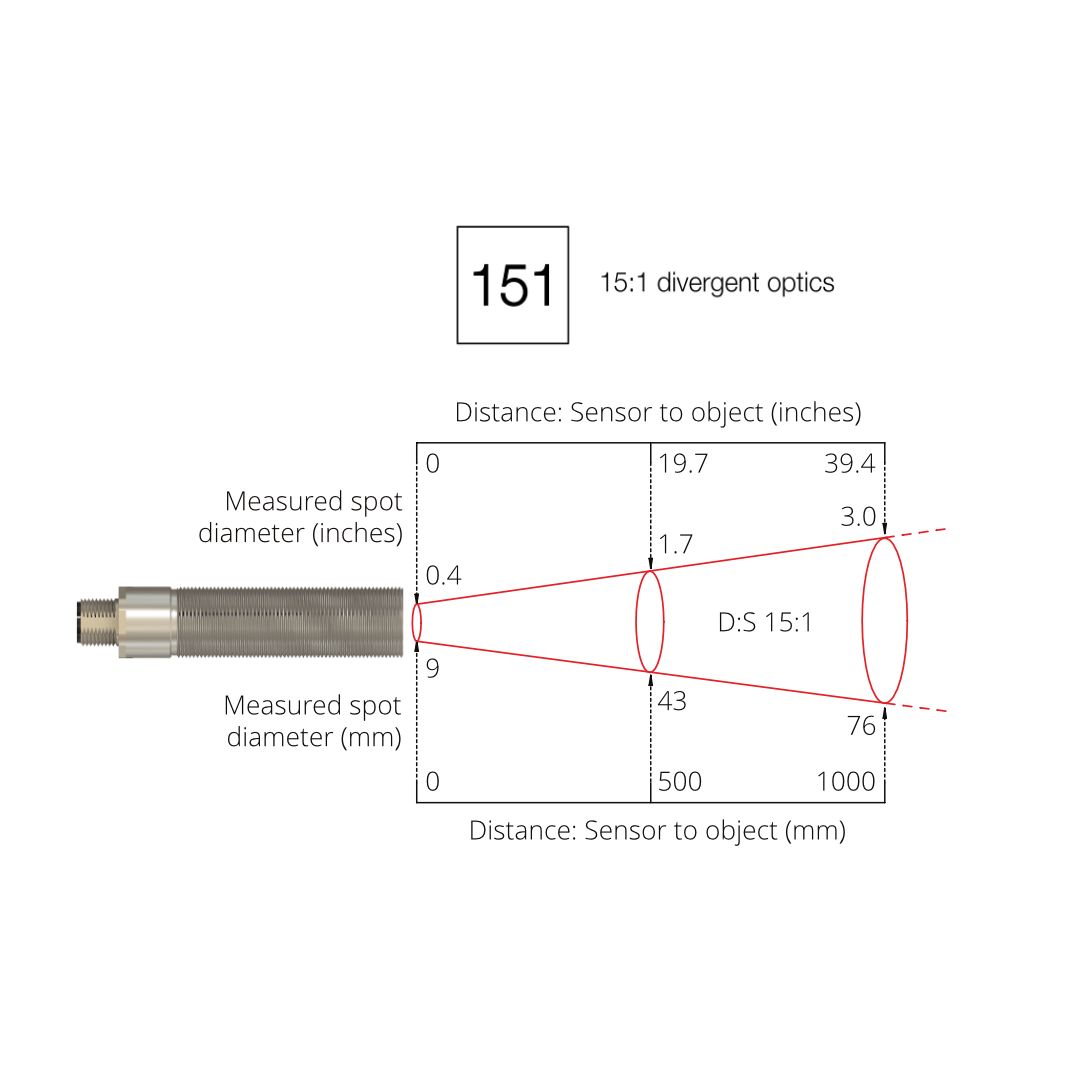

Field of View Diagrams
Please note: The given measured spot size contains 90% of the energy detected by the sensor. We normally recommend the target is at least twice as large as the given measured spot for maximum accuracy.
Sensor can measure at longer distances than shown, with a larger measured spot size; this is because the PyroCV detects only the wavelengths of infrared radiation that are not absorbed by the atmosphere.

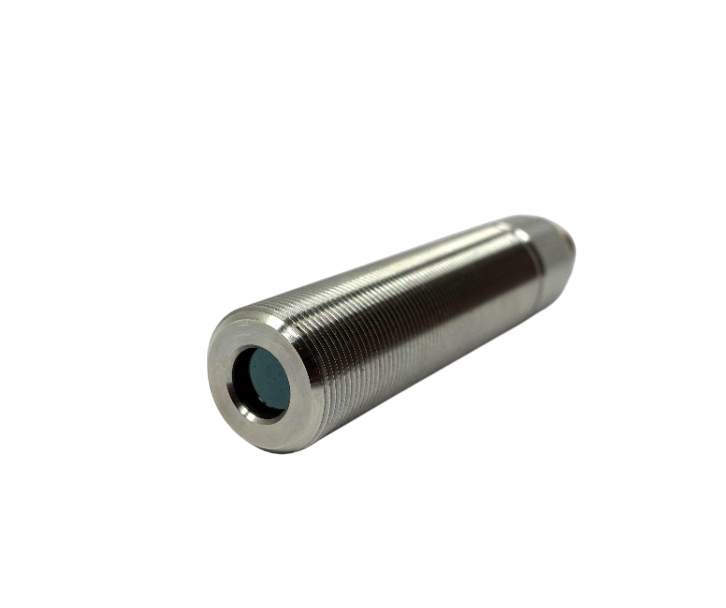

Mechanical Specifications
Construction
Stainless Steel

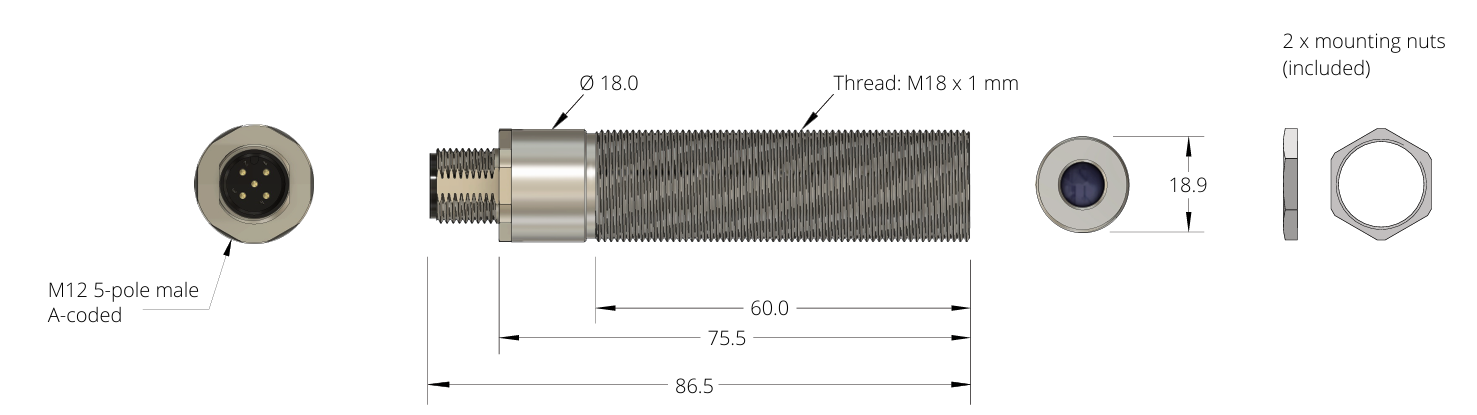

Dimensions
Sensor body length
86.5 mm
86.5 mm
Thread Mounting
M18 x 1 mm pitch,
length 60 mm
length 60 mm
Weight
90 g
Environmental Specifications
Environmental Rating
IP67 / IP65 (when mated)
Ambient (Operating) Temperature & Humidity
-40°C to +85°C, no condensation
Storage Temperature
-40°C to +85°C
Electromagnetic Compatibility (EMC)*
ISO 13766-1
*The PyroCV has been tested for load dump conditions in accordance with ISO16750-2 (clamped load dump). Compliance with ISO 13766-1 assumes installation in electrical systems providing equivalent load dump suppression. Protection against unclamped load dump must be ensured at system level.
