Excelog 6
6 Channel Handheld Temperature Data Logger with Touch Screen

Features

  • 4 x thermocouple inputs and 2 x RTD inputs
  • Display and log all 6 channels simultaneously or individually
  • Data logging to SD Card, or PC via USB interface
  • Powered by built-in battery, USB or mains adapter (included)
  • Touch screen with backlight
  • Built-in stand
  • Free software available; Modbus protocol allows use with third-party software
  • 2-channel scrolling temperature chart
  • Alarm indication for each channel

Interface Features

  • Intuitive touch screen interface
  • English, Spanish, French, German, Italian, Chinese and Japanese languages
  • Fully configurable; no additional hardware is required for configuration
  • Each channel is configurable separately for input type, maths, alarms and display options
  • Firmware updates via USB

Windows Software Features

  • Temperature display of all 6 channels
  • Data logging of live temperature data direct to PC
  • File format: Comma-separated text file (compatible with Excel)
  • Scrolling multi-channel temperature chart
  • Configuration of Excelog 6 settings

General Specifications

Inputs
4 x thermocouple inputs (any of the below types), for use with miniature thermocouple connectors, plus:

2 x RTD inputs, spring clamp, for 2-wire or 3-wire RTDs, 28 to 16 AWG
Accuracy (thermocouple inputs)
± 0.1% or 0.8°C, whichever is greater (Excelog only)
Accuracy (RTD inputs)
± 1.0% or 1.0°C
Temperature range (thermocouple inputs)
Type J: -200°C to 1200°C
Type K: -200°C to 1372°C
Type T: -200°C to 400°C
Type R: 0°C to 1768°C
Type S: 0°C to 1768°C
Type N: 0°C to 1300°C
Type E: -200°C to 1000°C
Temperature range (RTD inputs)
Pt100, Pt200, Pt500, Pt1000: -200°C to 850°C
Temperature resolution
0.1° for temperatures below 1000° (C or F)
1° for temperatures above 1000° (C or F)
Display
2.83” (72 mm) resistive touch TFT, 320 x 240 pixels, backlit
Configurable parameters
Temperature units, alarms, signal processing, date and time, data logging, power options, graph channels
Temperature units
°F or °C

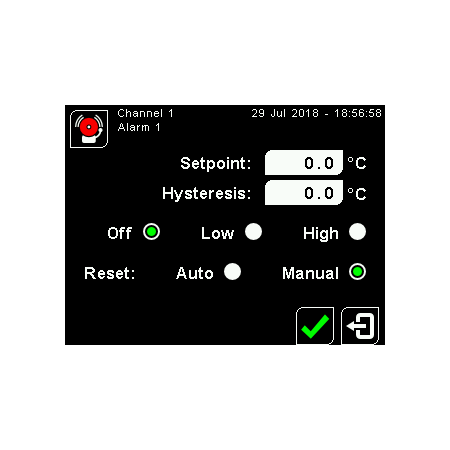

Alarm configuration
12 x visual alarms (2 per channel) with adjustable level, individually configurable as HI or LO.
Signal Processing
Average, minimum, maximum, standard deviation, temperature difference between 2 channels
Display response time
Temperatures update every 1 s
Operating temperature
0 to 50°C
Power supply
Built-in rechargeable Li-ion battery, or USB, or 5 V DC mains adapter (included)
Battery life (typical)
32 hours while logging with full display brightness
Up to 96 hours while logging in power saving mode
Charge time
6 hours (with supplied mains adapter)
Weight
200 g
Dimensions
136(w) x 71(h) x 32(d) mm

Data Logging Specifications

Data Logging Interval
1 to 86,400 seconds (1 day)
Max. SD Card Capacity
32 GB SD or SDHC (4 GB SD Card included - approx 2 years of data)
Variables Logged
Measured temperature, cold junction temperature, alarm events
File Format
.csv (can be imported to Excel)
Configurable Parameters
Sample period, number of samples, scheduled start date/time (or manual start/stop)

The Excelog 6 has six input channels:

  • 4 x thermocouple channels, with sockets for miniature (flat pin) thermocouple  connectors
  • 2 x RTD channels with spring terminals for wire connection directly to the logger



Dimensions (mm)

ELMAU

Spare mains adapter

ELSD

Spare 4 GB SD Card

ELCALCERT

Calibration certificate, UKAS traceable

Model Numbers

EXCELOG-6

6-channel data logger with 4 GB SD Card, USB cable and 5 V DC mains adapter

To order, contact Calex

Software





Features:

  • Temperature display of all 6 channels
  • Data logging of live temperature data direct to PC
  • File format: Comma-separated text file (compatible with Excel)
  • Scrolling multi-channel temperature chart
  • Configuration of Excelog 6 settings

Download for Windows: CalexExcelog_FullInstaller.exe
