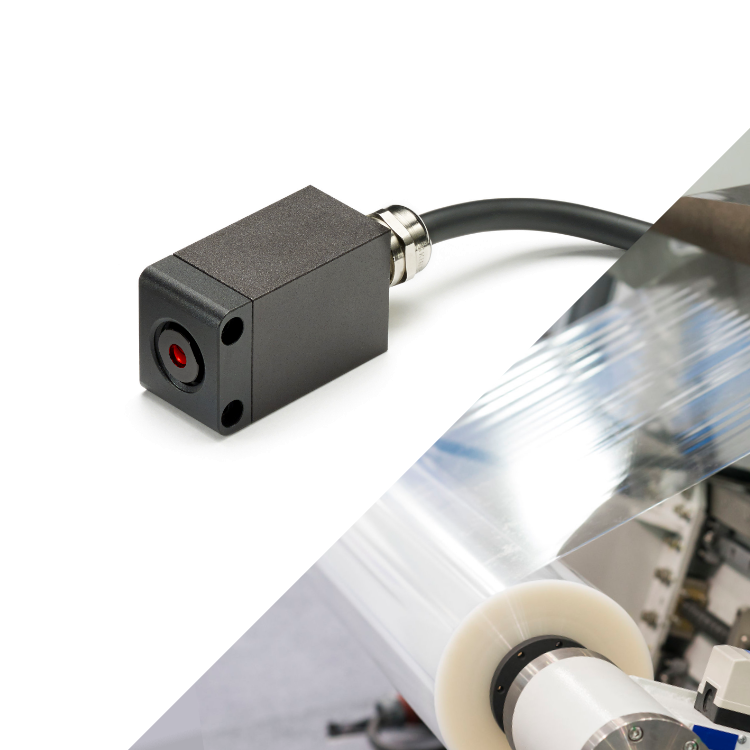

Data SheetThe PyroCube is an infrared pyrometer with an extremely fast response time and a very small measurement area size. It is available with or without the PM030 touch screen interface.
Measurement Specifications
Temperature Range
120°C to 350°C
Measurements below 120°C are possible with reduced stability
Measurements below 120°C are possible with reduced stability
Analogue output scale
Factory set to:
4 mA = 80°C
20 mA = 350°C
Adjustable via optional touch screen module or RS232
4 mA = 80°C
20 mA = 350°C
Adjustable via optional touch screen module or RS232
Response Time (95%)
10 ms
Adjustable up to 5 s via averaging function
Adjustable up to 5 s via averaging function
Measured Spot Diameter
12 mm at distance 200 mm; varies depending on measurement distance (see Field of View Diagrams below)
Target Sighting
Red LED built-in as standard on all models, shows the position and size of the measurement area. Switchable on/off.
Accuracy of Measurement
± 4°C
Repeatability
± 1°C
Temperature Resolution
0.5°C
Emissivity Setting
Adjustable, 0.3 to 1.0, via RS232C or optional touch screen interface
PM030 Specifications
Touch Screen Display Format
2.83” (72 mm) resistive touch TFT, 320 x 240 pixels, backlit
Configurable Parameters
Language (English, Chinese, Japanese)
Temperature units °C/°F
Displayed temperature
LED sighting on/off
Password
Date & time (for data logging time stamps)
Peak hold period, decay level
Averaging period
Correction (gain/offset)
Emissivity setting (with teach function)
Reflected energy compensation (with teach function)
Output type
Output temperature range
Polarity on error
Alarm mode, levels, hysteresis
Temperature units °C/°F
Displayed temperature
LED sighting on/off
Password
Date & time (for data logging time stamps)
Peak hold period, decay level
Averaging period
Correction (gain/offset)
Emissivity setting (with teach function)
Reflected energy compensation (with teach function)
Output type
Output temperature range
Polarity on error
Alarm mode, levels, hysteresis
PM030 Data Logging Specifications
Storage
MicroSD Card (optional), max. 32 GB, equal to 16 years of data at the fastest sample rate of 1 per second
Data Logging Interval
1 second to 1 day (configurable)
Internal Clock Battery
1 x BR 1225 3V (not included)
Variables Logged
Instantaneous target temperature, hold temperature, alarm events
File format
.csv
Configurable Parameters (Data Logging)
Sample period
Number of samples
Scheduled start
Number of samples
Scheduled start
Configurable Parameters (Alarm Logging)
Log times when triggered, acknowledged, reset
Log data while triggered
Log data while triggered
Electrical Specifications
Outputs
1 analogue output and 1 alarm output
Analogue Output
4-20 mA (this is the default factory setting on all models)
Output type can be changed via optional PM030 touch screen interface to a choice of:
0-20 mA
mV/°C

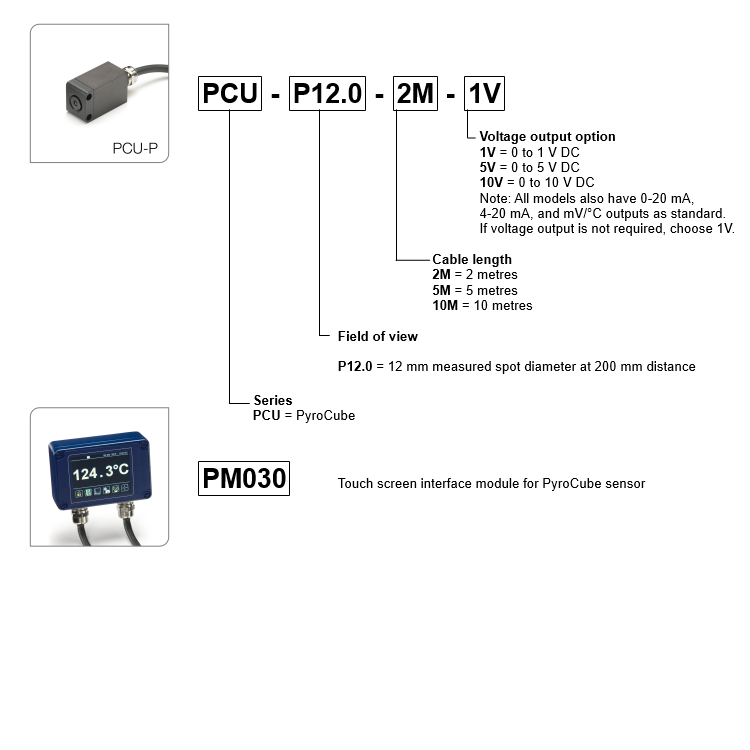

Voltage (range depends on model, see Ordering)
Output type can be changed via optional PM030 touch screen interface to a choice of:
0-20 mA
mV/°C
Voltage (range depends on model, see Ordering)
Alarm Output
1 open drain alarm output, rated 27 V DC, 0.2 A
Supply Voltage
5 to 27 V DC, 100 mA max
Digital Communications
RS232C Modbus RTU, non-isolated
Output Cable Connection to Sensor
Hardwired

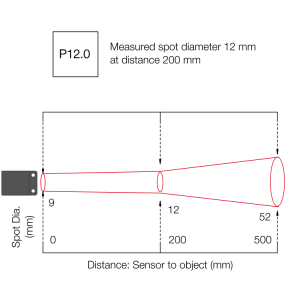

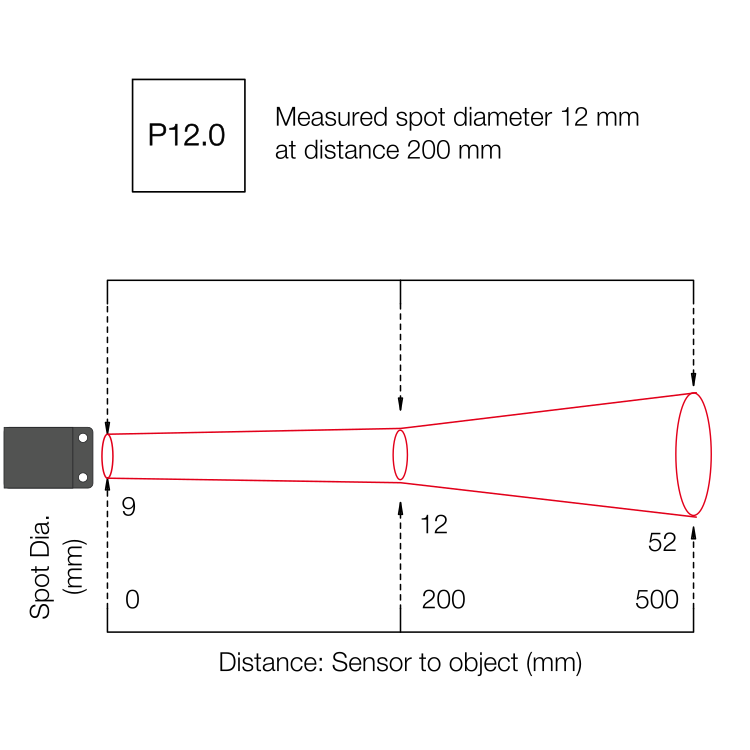

Field of View Diagrams
The given measured spot size contains 90% of the energy detected by the sensor. We normally recommend the target is at least twice as large as the given measured spot for maximum accuracy.
Accuracy specifications are valid up to the maximum distances shown.
Mechanical Specifications
Weight (without cable)
85 g
Environmental Specifications (PyroCube Sensor)
Environmental Rating
IP67
Operating Ambient Temperature
0°C to 50°C
Storage Temperature
-15°C to 70°C
Operating Ambient Humidity
30% to 85% RH non-condensing
Display Options
| Model PM030 | Optional touch screen terminal for indication, configuration, data logging and alarm outputs. Sensor is available with or without display. |
